Query NCSA log file format

IIS also uses the NCSA logging format, which has a fixed number of fields in ASCII text format separated by spaces. The structure is similar to the common log format used for Apache access logs. Fields in the NCSA common log data format include the client IP address, client ID (not typically used), domain\user ID, request received timestamp, text of the client request, server status code, and size of the object returned to the client.

The following example shows data in the NCSA common log format as documented for IIS.

198.51.100.7 - ExampleCorp\Li [10/Oct/2019:13:55:36 -0700] "GET /logo.gif HTTP/1.0" 200 232
198.51.100.14 - AnyCompany\Jorge [24/Nov/2019:10:49:52 -0700] "GET /index.html HTTP/1.1" 200 2165
198.51.100.22 - ExampleCorp\Mateo [27/Dec/2019:11:38:12 -0700] "GET /about.html HTTP/1.1" 200 1287
198.51.100.9 - AnyCompany\Nikki [11/Jan/2020:11:40:11 -0700] "GET /image.png HTTP/1.1" 404 230
198.51.100.2 - ExampleCorp\Ana [15/Feb/2019:10:12:22 -0700] "GET /favicon.ico HTTP/1.1" 404 30
198.51.100.13 - AnyCompany\Saanvi [14/Mar/2019:11:40:33 -0700] "GET /intro.html HTTP/1.1" 200 1608
198.51.100.11 - ExampleCorp\Xiulan [22/Apr/2019:10:51:34 -0700] "GET /group/index.html HTTP/1.1" 200 1344

Create a table in Athena for IIS NCSA logs

For your CREATE TABLE statement, you can use the Grok SerDe and a grok pattern similar to the one for Apache web server logs. Unlike Apache logs, the grok pattern uses %{DATA:user_id} for the third field instead of %{USERNAME:user_id} to account for the presence of the backslash in domain\user_id. For more information about using the Grok SerDe, see Writing grok custom classifiers in the AWS Glue Developer Guide.

To create a table in Athena for IIS NCSA web server logs

  1. Open the Athena console at https://eusc-de-east-1.console.amazonaws-eusc.eu/athena/.

  2. Paste the following DDL statement into the Athena Query Editor. Modify the values in LOCATION 's3://amzn-s3-demo-bucket/iis-ncsa-logs/' to point to your IIS NCSA logs in Amazon S3.

    CREATE EXTERNAL TABLE iis_ncsa_logs(
  client_ip string,
  client_id string,
  user_id string,
  request_received_time string,
  client_request string,
  server_status string,
  returned_obj_size string
  )
ROW FORMAT SERDE
   'com.amazonaws.glue.serde.GrokSerDe'
WITH SERDEPROPERTIES (
   'input.format'='^%{IPV4:client_ip} %{DATA:client_id} %{DATA:user_id} %{GREEDYDATA:request_received_time} %{QUOTEDSTRING:client_request} %{DATA:server_status} %{DATA: returned_obj_size}$'
   )
STORED AS INPUTFORMAT
   'org.apache.hadoop.mapred.TextInputFormat'
OUTPUTFORMAT
   'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
LOCATION
   's3://amzn-s3-demo-bucket/iis-ncsa-logs/';

  3. Run the query in the Athena console to register the iis_ncsa_logs table. When the query completes, the logs are ready for you to query from Athena.

Example select queries for IIS NCSA logs

Example– Filtering for 404 errors

The following example query selects the request received time, text of the client request, and server status code from the iis_ncsa_logs table. The WHERE clause filters for HTTP status code 404 (page not found).

SELECT request_received_time, client_request, server_status
FROM iis_ncsa_logs
WHERE server_status = '404'

The following image shows the results of the query in the Athena Query Editor.

Querying an IIS NCSA log from Athena for HTTP 404 entries.
Example– Filtering for successful requests from a particular domain

The following example query selects the user ID, request received time, text of the client request, and server status code from the iis_ncsa_logs table. The WHERE clause filters for requests with HTTP status code 200 (successful) from users in the AnyCompany domain.

SELECT user_id, request_received_time, client_request, server_status
FROM iis_ncsa_logs
WHERE server_status = '200' AND user_id LIKE 'AnyCompany%'

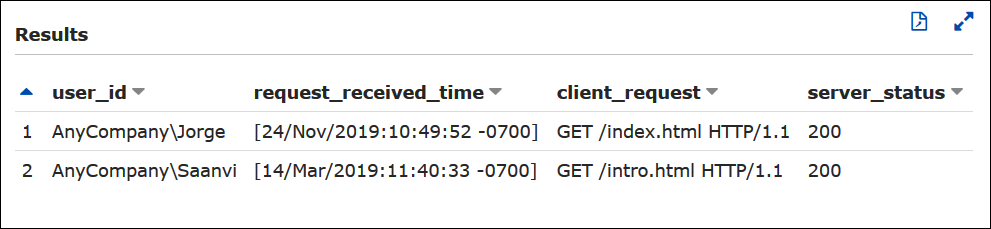

The following image shows the results of the query in the Athena Query Editor.

Querying an IIS NCSA log from Athena for HTTP 200 entries.
