Migration from Couchbase Server
Introduction
This guide presents the key points to consider when migrating from Couchbase Server to Amazon DocumentDB. It explains considerations for the discovery, planning, execution, and validation phases of your migration. It also explains how to perform offline and online migrations.
Comparison to Amazon DocumentDB
| Couchbase Server | Amazon DocumentDB | |
|---|---|---|
| Data Organization | In versions 7.0 and later, data is organized into buckets, scopes, and collections. In earlier versions, data is organized into buckets. | Data is organized into databases and collections. |
| Compatibility | There are separate APIs for each service (e.g. data, index, search, etc.). Secondary lookups use SQL++ (formerly known an N1QL); a query language based on ANSI-standard SQL so it is familiar to many developers. | Amazon DocumentDB is compatible with the MongoDB API. |
| Architecture | Storage is attached to each cluster instance. You cannot scale compute independently of storage. | Amazon DocumentDB is designed for the cloud and to avoid the limitations of traditional database architectures. The compute and storage layers are separated in Amazon DocumentDB and the compute layer can be scaled independently of storage. |
| Add read capacity on demand | Clusters can be scaled out by adding instances. Since storage is attached to the instance where the service is running, the time it takes to scale out is dependent on the amount of data that needs to be moved to the new instance, or rebalanced. | You can achieve read scaling for your Amazon DocumentDB cluster by creating up to 15 Amazon DocumentDB replicas in the cluster. There is no impact to the storage layer. |
| Recover quickly from node failure | Clusters have automatic failover capabilities but the time to get the cluster back to full strength is dependent on the amount of data that needs to be moved to the new instance. | Amazon DocumentDB can failover the primary typically within 30 seconds and restore the cluster back to full strength in 8-10 minutes regardless of the amount of data in the cluster. |
| Scale storage as data grows | For self-managed clusters storage and IOs do not scale automatically. | Amazon DocumentDB storage and IOs scale automatically. |
| Backup data without affecting performance | Backups are performed by the backup service and are not enabled by default. Since storage and compute are not separated there can be an impact to performance. | Amazon DocumentDB backups are enabled by default and cannot be turned off. Backups are handled by the storage layer, so they are zero-impact on the compute layer. Amazon DocumentDB supports restoring from a cluster snapshot and restoring to a point in time. |
| Data durability | There can be a maximum of 3 replica copies of data in a cluster for a total of 4 copies. Each instance where the data service is running will have active and 1, 2, or 3 replica copies of the data. | Amazon DocumentDB maintains 6 copies of data no matter how many compute instances there are with a write quorum of 4 and persist true. Clients receive an acknowledgement after the storage layer has persisted 4 copies of the data. |
| Consistency | Immediate consistency for K/V operations is supported. The Couchbase SDK routes K/V requests to the specific instance that contains the active copy of the data so once an update is acknowledged, the client is guaranteed to read that update. Replication of updates to other services (index, search, analytics, eventing) is eventually consistent. | Amazon DocumentDB replicas are eventually consistent. If immediate consistency reads are required, the client can read from the primary instance. |
| Replication | Cross-Data Center Replication (XDCR) provides filtered, active-passive/active-active replication of data in many:many topologies. | Amazon DocumentDB global clusters provide active-passive replication in 1:many (up to 10) topologies. |
Discovery
Migrating to Amazon DocumentDB requires a thorough understanding of the existing database workload. Workload discovery is the process of analyzing your Couchbase cluster configuration and operational characteristics – data set, indexes, and workload – to ensure a seamless transition with minimal disruption.
Cluster configuration
Couchbase uses a service-centric architecture where each capability corresponds to a service. Execute the following command against your Couchbase cluster to determine which services are being used (see Getting Information on Nodes
curl -v -u <administrator>:<password> \ http://<ip-address-or-hostname>:<port>/pools/nodes | \ jq '[.nodes[].services[]] | unique'
Sample output:
[ "backup", "cbas", "eventing", "fts", "index", "kv", "n1ql" ]
Couchbase services include the following:
Data service (kv)
The data service provides read/write access to data in memory and on disk.
Amazon DocumentDB supports K/V operations on JSON data via the MongoDB API.
Query service (n1ql)
The query service supports the querying of JSON data via SQL++.
Amazon DocumentDB supports the querying of JSON data via the MongoDB API.
Index service (index)
The index service creates and maintains indexes on data, enabling faster querying.
Amazon DocumentDB supports a default primary index and the creation of secondary indexes on JSON data via the MongoDB API.
Search service (fts)
The search service supports the creation of indexes for full text search.
Amazon DocumentDB's native full text search feature allows you to perform text search on large textual data sets using special purpose text indexes via the MongoDB API. For advanced search use cases, Amazon DocumentDB zero-ETL integration with Amazon OpenSearch Service
Analytics service (cbas)
The analytics service supports analyzing JSON data in near real-time.
Amazon DocumentDB supports ad-hoc queries on JSON data via the MongoDB API. You can also run complex queries on your JSON data in Amazon DocumentDB using Apache Spark running on Amazon EMR
Eventing service (eventing)
The eventing service executes user-defined business logic in response to data changes.
Amazon DocumentDB automates event-driven workloads by invoking AWS Lambda functions each time that data changes with your Amazon DocumentDB cluster
Backup service (backup)
The backup service schedules full and incremental data backups and merges of previous data backups.
Amazon DocumentDB continuously backs up your data to Amazon S3 with a retention period of 1–35 days so that you can quickly restore to any point within the backup retention period. Amazon DocumentDB also takes automatic snapshots of your data as part of this continuous backup process. You can also manage backup and restore of Amazon DocumentDB with AWS Backup.
Operational characteristics
Use the Discovery Tool for Couchbase
Data set
The tool retrieves the following bucket, scope, and collection information:
bucket name
bucket type
scope name
collection name
total size (bytes)
total items
item size (bytes)
Indexes
The tool retrieves the following index statistics and all index definitions for all buckets. Note that primary indexes are excluded since Amazon DocumentDB automatically creates a primary index for each collection.
bucket name
scope name
collection name
index name
index size (bytes)
Workload
The tool retrieves K/V and N1QL query metrics. K/V metric values are gathered at the bucket level and SQL++ metrics are gathered at the cluster level.
The tool command line options are as follows:
python3 discovery.py \ --username <source cluster username> \ --password <source cluster password> \ --data_node <data node IP address or DNS name> \ --admin_port <administration http REST port> \ --kv_zoom <get bucket statistics for specified interval> \ --tools_path <full path to Couchbase tools> \ --index_metrics <gather index definitions and SQL++ metrics> \ --indexer_port <indexer service http REST port> \ --n1ql_start <start time for sampling> \ --n1ql_step <sample interval over the sample period>
Here is an example command:
python3 discovery.py \ --username username \ --password ******** \ --data_node "http://10.0.0.1" \ --admin_port 8091 \ --kv_zoom week \ --tools_path "/opt/couchbase/bin" \ --index_metrics true \ --indexer_port 9102 \ --n1ql_start -60000 \ --n1ql_step 1000
K/V metric values will be based on samples every 10 minutes for the past week (see HTTP method and URI
collection-stats.csv – bucket, scope, and collection information
bucket,bucket_type,scope_name,collection_name,total_size,total_items,document_size beer-sample,membase,_default,_default,2796956,7303,383 gamesim-sample,membase,_default,_default,114275,586,196 pillowfight,membase,_default,_default,1901907769,1000006,1902 travel-sample,membase,inventory,airport,547914,1968,279 travel-sample,membase,inventory,airline,117261,187,628 travel-sample,membase,inventory,route,13402503,24024,558 travel-sample,membase,inventory,landmark,3072746,4495,684 travel-sample,membase,inventory,hotel,4086989,917,4457 ...
index-stats.csv – index names and sizes
bucket,scope,collection,index-name,index-size beer-sample,_default,_default,beer_primary,468144 gamesim-sample,_default,_default,gamesim_primary,87081 travel-sample,inventory,airline,def_inventory_airline_primary,198290 travel-sample,inventory,airport,def_inventory_airport_airportname,513805 travel-sample,inventory,airport,def_inventory_airport_city,487289 travel-sample,inventory,airport,def_inventory_airport_faa,526343 travel-sample,inventory,airport,def_inventory_airport_primary,287475 travel-sample,inventory,hotel,def_inventory_hotel_city,497125 ...
kv-stats.csv – get, set, and delete metrics for all buckets
bucket,gets,sets,deletes beer-sample,0,0,0 gamesim-sample,0,0,0 pillowfight,369,521,194 travel-sample,0,0,0
n1ql-stats.csv – SQL++ select, delete, and insert metrics for the cluster
selects,deletes,inserts 0,132,87
indexes-<bucket-name>.txt – index definitions of all indexes in the bucket. Note that primary indexes are excluded since Amazon DocumentDB automatically creates a primary index for each collection.
CREATE INDEX `def_airportname` ON `travel-sample`(`airportname`) CREATE INDEX `def_city` ON `travel-sample`(`city`) CREATE INDEX `def_faa` ON `travel-sample`(`faa`) CREATE INDEX `def_icao` ON `travel-sample`(`icao`) CREATE INDEX `def_inventory_airport_city` ON `travel-sample`.`inventory`.`airport`(`city`) CREATE INDEX `def_inventory_airport_faa` ON `travel-sample`.`inventory`.`airport`(`faa`) CREATE INDEX `def_inventory_hotel_city` ON `travel-sample`.`inventory`.`hotel`(`city`) CREATE INDEX `def_inventory_landmark_city` ON `travel-sample`.`inventory`.`landmark`(`city`) CREATE INDEX `def_sourceairport` ON `travel-sample`(`sourceairport`) ...
Planning
In the planning phase you will determine Amazon DocumentDB cluster requirements and mapping of the Couchbase buckets, scopes, and collections to Amazon DocumentDB databases and collections.
Amazon DocumentDB cluster requirements
Use the data gathered in the discovery phase to size your Amazon DocumentDB cluster. See Instance sizing for more information about sizing your Amazon DocumentDB cluster.
Mapping buckets, scopes, and collections to databases and collections
Determine the databases and collections that will exist in your Amazon DocumentDB cluster(s). Consider the following options depending on how data is organized in your Couchbase cluster. These are not the only options, but they provide starting points for you to consider.

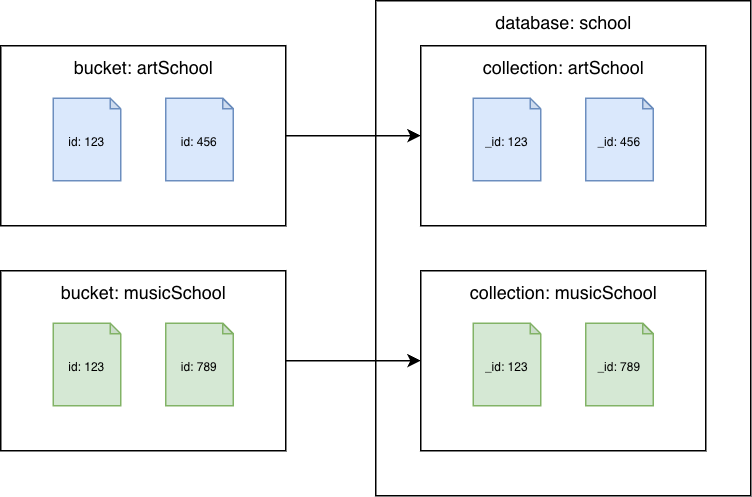

Couchbase Server 6.x or earlier
Couchbase buckets to Amazon DocumentDB collections
Migrate each bucket to a different Amazon DocumentDB collection. In this scenario, the Couchbase document id value will be used as the Amazon DocumentDB _id value.

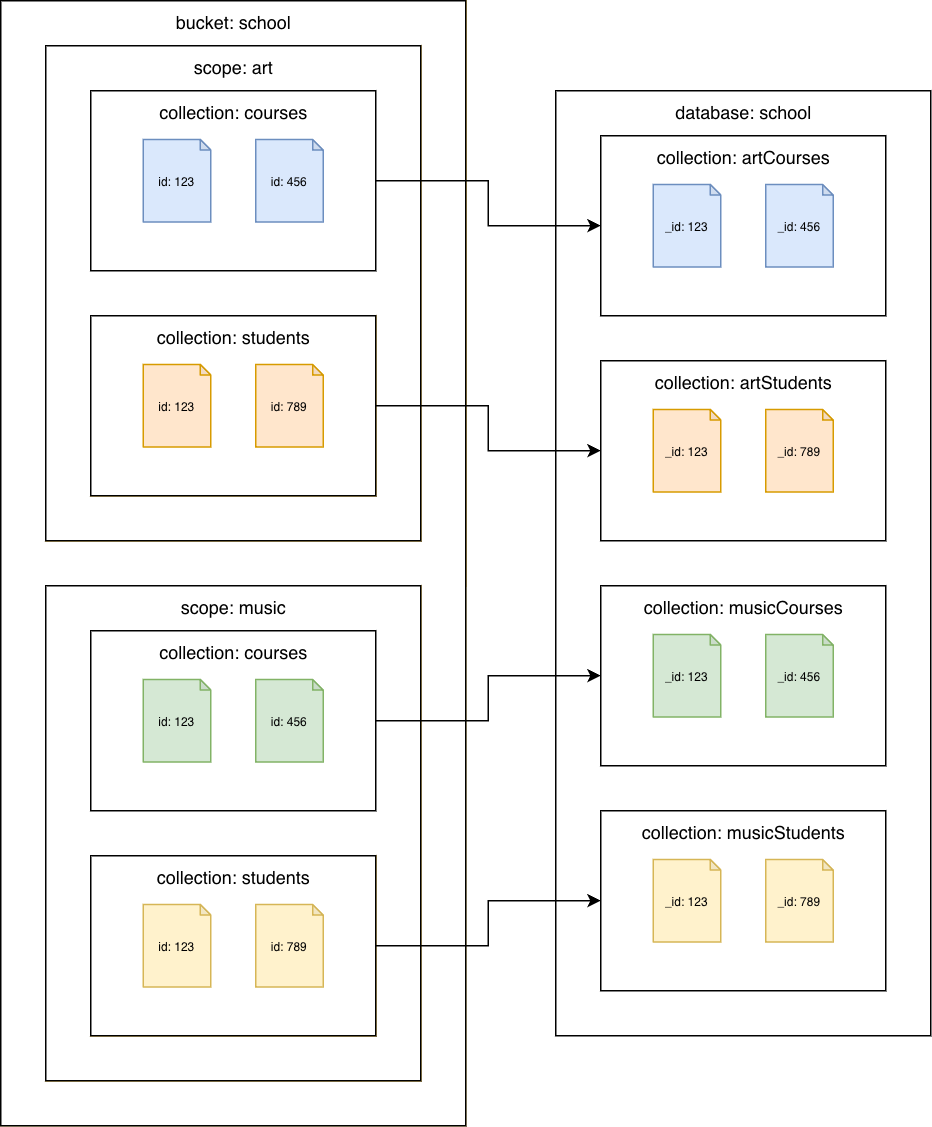

Couchbase Server 7.0 or later
Couchbase collections to Amazon DocumentDB collections
Migrate each collection to a different Amazon DocumentDB collection. In this scenario, the Couchbase document id value will be used as the Amazon DocumentDB _id value.
Migration
Index migration
Migrating to Amazon DocumentDB involves transferring not just data but also indexes to maintain query performance and optimize database operations. This section outlines the detailed step-by-step process for migrating indexes to Amazon DocumentDB while ensuring compatibility and efficiency.
Use Amazon QCREATE INDEX statements to Amazon DocumentDB createIndex() commands.
Upload the indexes-<bucket name>.txt file(s) created by the Discovery Tool for Couchbase.
Enter the following prompt:
Convert the Couchbase CREATE INDEX statements to Amazon DocumentDB createIndex commands
Amazon Q will generate equivalent Amazon DocumentDB createIndex() commands. Note that you may need to update the collection names based on how you mapped the Couchbase buckets, scopes, and collections to Amazon DocumentDB collections.
For example:
indexes-beer-sample.txt
CREATE INDEX `beerType` ON `beer-sample`(`type`) CREATE INDEX `code` ON `beer-sample`(`code`) WHERE (`type` = "brewery")
Example Amazon Q output (excerpt):
db.beerSample.createIndex( { "type": 1 }, { "name": "beerType", "background": true } ) db.beerSample.createIndex( { "code": 1 }, { "name": "code", "background": true, "partialFilterExpression": { "type": "brewery" } } )
For any indexes that Amazon Q is not able to convert, refer to Managing Amazon DocumentDB indexes and Indexes and index properties for more information.
Refactor code to use the MongoDB APIs
Clients use the Couchbase SDKs to connect to Couchbase Server. Amazon DocumentDB clients use MongoDB drivers to connect to Amazon DocumentDB. All the languages supported by the Couchbase SDKs are also supported by MongoDB drivers. See MongoDB Drivers
Because the APIs are different between Couchbase Server and Amazon DocumentDB, you will need to refactor your code to use the appropriate MongoDB APIs. You can use Amazon Q
Upload the source code file(s).
Enter the following prompt:
Convert the Couchbase API code to Amazon DocumentDB API code
Using the Hello Couchbase
from datetime import timedelta from pymongo import MongoClient # Connection parameters database_name = "travel-sample" # Connect to Amazon DocumentDB cluster client = MongoClient('<Amazon DocumentDB connection string>') # Get reference to database and collection db = client['travel-sample'] airline_collection = db['airline'] # upsert document function def upsert_document(doc): print("\nUpsert Result: ") try: # key will equal: "airline_8091" key = doc["type"] + "_" + str(doc["id"]) doc['_id'] = key # Amazon DocumentDB uses _id as primary key result = airline_collection.update_one( {'_id': key}, {'$set': doc}, upsert=True ) print(f"Modified count: {result.modified_count}") except Exception as e: print(e) # get document function def get_airline_by_key(key): print("\nGet Result: ") try: result = airline_collection.find_one({'_id': key}) print(result) except Exception as e: print(e) # query for document by callsign def lookup_by_callsign(cs): print("\nLookup Result: ") try: result = airline_collection.find( {'callsign': cs}, {'name': 1, '_id': 0} ) for doc in result: print(doc['name']) except Exception as e: print(e) # Test document airline = { "type": "airline", "id": 8091, "callsign": "CBS", "iata": None, "icao": None, "name": "Couchbase Airways", } upsert_document(airline) get_airline_by_key("airline_8091") lookup_by_callsign("CBS")
Refer to Connecting programmatically to Amazon DocumentDB for examples of connecting to Amazon DocumentDB in Python, Node.js, PHP, Go, Java, C#/.NET, R, and Ruby.
Select the migration approach
When migrating data to Amazon DocumentDB, there are two options:
Offline migration
Consider an offline migration when:
Downtime is acceptable: Offline migration involves stopping write operations to the source database, exporting the data, and then importing it to Amazon DocumentDB. This process incurs downtime for your application. If your application or workload can tolerate this period of unavailability, offline migration is a viable option.
Migrating smaller datasets or conducting proofs of concept: For smaller datasets, the time required for the export and import process is relatively short, making offline migration a quick and simple method. It is also well-suited for development, testing, and proof-of-concept environments where downtime is less critical.
Simplicity is a priority: The offline method, using cbexport and mongoimport, is generally the most straightforward approach to migrate data. It avoids the complexities of change data capture (CDC) involved in online migration methods.
No ongoing changes need to be replicated: If the source database is not actively receiving changes during the migration, or if those changes are not critical to be captured and applied to the target during the migration process, then an offline approach is appropriate.
Couchbase Server 6.x or earlier
Couchbase bucket to Amazon DocumentDB collection
Export data using cbexport json--format option you can use lines or list.
cbexport json \ --cluster <source cluster endpoint> \ --bucket <bucket name> \ --format <lines | list> \ --username <username> \ --password <password> \ --output export.json \ --include-key _id
Import the data to an Amazon DocumentDB collection using mongoimport with the appropriate option to import the lines or list:
lines:
mongoimport \ --db <database> \ --collection <collection> \ --uri "<Amazon DocumentDB cluster connection string>" \ --file export.json
list:
mongoimport \ --db <database> \ --collection <collection> \ --uri "<Amazon DocumentDB cluster connection string>" \ --jsonArray \ --file export.json
To perform an offline migration, use the cbexport and mongoimport tools:
Couchbase Server 7.0 or later
Couchbase bucket with default scope and default collection
Export data using cbexport json--format option you can use lines or list.
cbexport json \ --cluster <source cluster endpoint> \ --bucket <bucket name> \ --format <lines | list> \ --username <username> \ --password <password> \ --output export.json \ --include-key _id
Import the data to an Amazon DocumentDB collection using mongoimport with the appropriate option to import the lines or list:
lines:
mongoimport \ --db <database> \ --collection <collection> \ --uri "<Amazon DocumentDB cluster connection string>" \ --file export.json
list:
mongoimport \ --db <database> \ --collection <collection> \ --uri "<Amazon DocumentDB cluster connection string>" \ --jsonArray \ --file export.json
Couchbase collections to Amazon DocumentDB collections
Export data using cbexport json--include-data option to export each collection. For the --format option you can use lines or list. Use the --scope-field and --collection-field options to store the name of the scope and collection in the specified fields in each JSON document.
cbexport json \ --cluster <source cluster endpoint> \ --bucket <bucket name> \ --include-data <scope name>.<collection name> \ --format <lines | list> \ --username <username> \ --password <password> \ --output export.json \ --include-key _id \ --scope-field "_scope" \ --collection-field "_collection"
Since cbexport added the _scope and _collection fields to every exported document, you can remove them from every document in the export file via search and replace, sed, or whatever method you prefer.
Import the data for each collection to an Amazon DocumentDB collection using mongoimport with the appropriate option to import the lines or list:
lines:
mongoimport \ --db <database> \ --collection <collection> \ --uri "<Amazon DocumentDB cluster connection string>" \ --file export.json
list:
mongoimport \ --db <database> \ --collection <collection> \ --uri "<Amazon DocumentDB cluster connection string>" \ --jsonArray \ --file export.json
Online migration
Consider an online migration when you need to minimize downtime and ongoing changes need to be replicated to Amazon DocumentDB in near-real time.
See How to perform a live migration from Couchbase to Amazon DocumentDB
Couchbase Server 6.x or earlier
Couchbase bucket to Amazon DocumentDB collection
The migration utility for Couchbasedocument.id.strategy parameter is configured to use the message key value as the _id field value (see Sink Connector Id Strategy Properties
ConnectorConfiguration: document.id.strategy: 'com.mongodb.kafka.connect.sink.processor.id.strategy.ProvidedInKeyStrategy'
Couchbase Server 7.0 or later
Couchbase bucket with default scope and default collection
The migration utility for Couchbasedocument.id.strategy parameter is configured to use the message key value as the _id field value (see Sink Connector Id Strategy Properties
ConnectorConfiguration: document.id.strategy: 'com.mongodb.kafka.connect.sink.processor.id.strategy.ProvidedInKeyStrategy'
Couchbase collections to Amazon DocumentDB collections
Configure the source connector
ConnectorConfiguration: # add couchbase.collections configuration couchbase.collections: '<scope 1>.<collection 1>, <scope 1>.<collection 2>, ...'
Configure the sink connector
ConnectorConfiguration: # remove collection configuration #collection: 'test' # modify topics configuration topics: '<bucket>.<scope 1>.<collection 1>, <bucket>.<scope 1>.<collection 2>, ...' # add topic.override.%s.%s configurations for each topic topic.override.<bucket>.<scope 1>.<collection 1>.collection: '<collection>' topic.override.<bucket>.<scope 1>.<collection 2>.collection: '<collection>'
Validation
This section provides a detailed validation process to ensure data consistency and integrity after migrating to Amazon DocumentDB. The validation steps apply regardless of the migration method.
Topics
Verify that all collections exist in the target
Couchbase source
option 1: query workbench
SELECT RAW `path` FROM system:keyspaces WHERE `bucket` = '<bucket>'
option 2: cbq
cbq \ -e <source cluster endpoint> \ -u <username> \ -p <password> \ -q "SELECT RAW `path` FROM system:keyspaces WHERE `bucket` = '<bucket>'"
Amazon DocumentDB target
mongosh (see Connect to your Amazon DocumentDB cluster):
db.getSiblingDB('<database>') db.getCollectionNames()
Verify document count between souce and target clusters
Couchbase source
Couchbase Server 6.x or earlier
option 1: query workbench
SELECT COUNT(*) FROM `<bucket>`
option 2: cbq
cbq \ -e <source cluster endpoint> \ -u <username> \ -p <password> \ -q "SELECT COUNT(*) FROM `<bucket:>`"
Couchbase Server 7.0 or later
option 1: query workbench
SELECT COUNT(*) FROM `<bucket>`.`<scope>`.`<collection>`
option 2: cbq
cbq \ -e <source cluster endpoint> \ -u <username> \ -p <password> \ -q "SELECT COUNT(*) FROM `<bucket:>`.`<scope>`.`<collection>`"
Amazon DocumentDB target
mongosh (see Connect to your Amazon DocumentDB cluster):
db = db.getSiblingDB('<database>') db.getCollection('<collection>').countDocuments()
Compare documents between source and target clusters
Couchbase source
Couchbase Server 6.x or earlier
option 1: query workbench
SELECT META().id as _id, * FROM `<bucket>` LIMIT 5
option 2: cbq
cbq \ -e <source cluster endpoint> -u <username> \ -p <password> \ -q "SELECT META().id as _id, * FROM `<bucket>` \ LIMIT 5"
Couchbase Server 7.0 or later
option 1: query workbench
SELECT COUNT(*) FROM `<bucket>`.`<scope>`.`<collection>`
option 2: cbq
cbq \ -e <source cluster endpoint> \ -u <username> \ -p <password> \ -q "SELECT COUNT(*) FROM `<bucket:>`.`<scope>`.`<collection>`"
Amazon DocumentDB target
mongosh (see Connect to your Amazon DocumentDB cluster):
db = db.getSiblingDB('<database>') db.getCollection('<collection>').find({ _id: { $in: [ <_id 1>, <_id 2>, <_id 3>, <_id 4>, <_id 5> ] } })
