Configuring Automations to monitor CloudWatch Alarms

You can configure your Automation runbook executions to monitor CloudWatch alarms. If a specified alarm enters ALARM state, Automation stops the execution. For executions using rate control mode or running across multiple accounts, Automation cancels all pending executions. If you define onCancel steps in your runbook, those steps run before the execution ends. This prevents runbooks from continuing when monitored resources are unhealthy.

Before you begin

Complete these prerequisites before configuring CloudWatch alarm monitoring:

  • Create a CloudWatch alarm – Create an alarm that monitors resources affected by your Automation execution. For more information, see Using Amazon CloudWatch alarms.

  • Configure execution identity permissions – The execution identity used by Automation must have the following permissions for CloudWatch alarm monitoring to work correctly:

    • cloudwatch:DescribeAlarms – Required to monitor alarm states.

    • ssm:StopAutomationExecution – Required to stop the execution when an alarm activates.

    The execution identity is determined by the IAM role ARN specified in the assumeRole field of your Automation runbook. If no assumeRole value is specified, the runbook executes using the identity of the IAM principal that called StartAutomationExecution.

The following example shows a minimal IAM policy that grants the required permissions for CloudWatch alarm monitoring:


{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "cloudwatch:DescribeAlarms",
                "ssm:StopAutomationExecution"
            ],
            "Resource": "*"
        }
    ]
}

Configuring alarm monitoring (console)

Use the following procedure to configure CloudWatch alarm monitoring when starting an automation from the Systems Manager console.

To configure alarm monitoring

Open the AWS Systems Manager console at https://eusc-de-east-1.console.amazonaws-eusc.eu/systems-manager/.

  1. In the navigation pane, choose Automation.

  2. Choose Execute automation.

  3. Select a runbook and configure the input parameters for your execution.

  4. In the CloudWatch alarm section, choose an alarm to monitor during the execution.

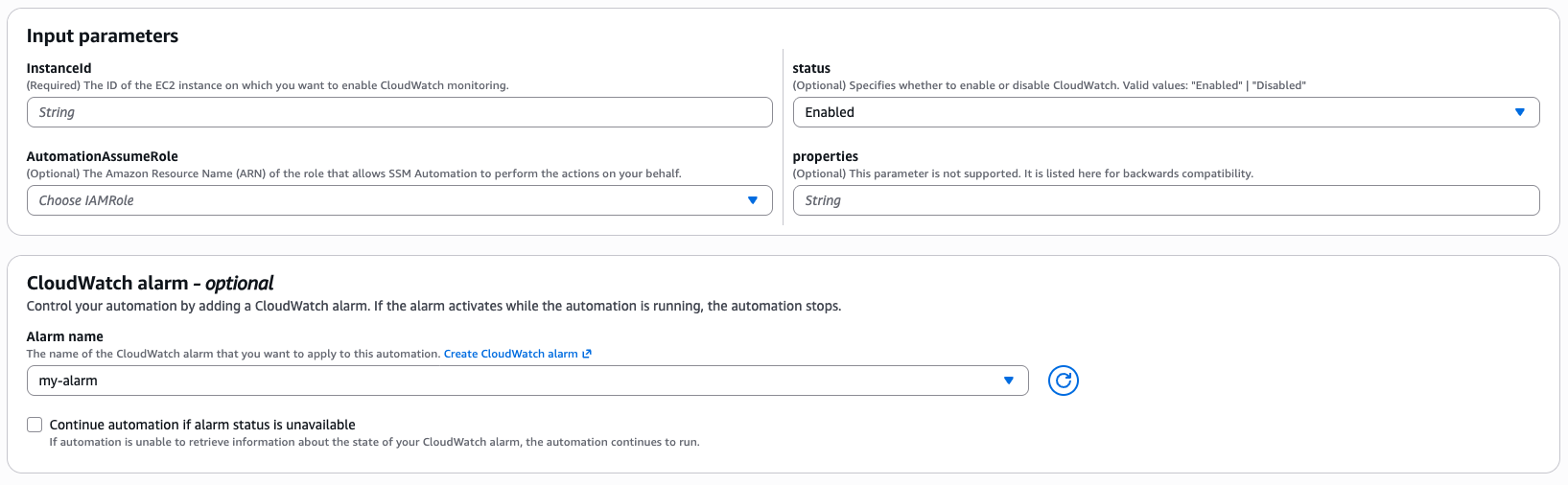

    The CloudWatch alarm section of the Systems Manager Automation console showing alarm selection and the option to continue when alarm state is unavailable.

  5. (Optional) Toggle Continue automation if alarm state is unavailable to control behavior when Automation cannot retrieve the alarm state. When enabled, the execution continues even if the alarm state cannot be determined. When disabled (default), the execution stops if the alarm state cannot be retrieved.

  6. Choose Execute.

Configuring alarm monitoring (AWS CLI)

Use the --alarm-configuration parameter with the aws ssm start-automation-execution command to specify CloudWatch alarms to monitor.

The --alarm-configuration parameter accepts a JSON structure with the following fields:

  • Alarms (required) – An alarm object with a Name field that identifies the CloudWatch alarm to monitor.

  • IgnorePollAlarmFailure (optional, boolean) – Controls behavior when Automation cannot retrieve the alarm state. Set to false (default) to stop the execution if alarm state cannot be determined, or true to continue the execution regardless.

The following example starts an automation that monitors a CloudWatch alarm named my-alarm. Because IgnorePollAlarmFailure is set to false, the automation stops if it cannot retrieve the alarm state:


aws ssm start-automation-execution \
    --document-name "AWS-RestartEC2Instance" \
    --parameters '{"InstanceId":["i-02573cafcfEXAMPLE"]}' \
    --alarm-configuration '{"IgnorePollAlarmFailure":false,"Alarms":[{"Name":"my-alarm"}]}'

Cross-account and cross-region alarm monitoring

For automations running across multiple Accounts and Regions, you can configure alarm monitoring per target location using the TargetLocationAlarmConfiguration field within TargetLocations. The execution role in each target account (for example, AWS-SystemsManager-AutomationExecutionRole) must have cloudwatch:DescribeAlarms and ssm:StopAutomationExecution permissions.

For more information about setting up cross-account roles, see Setting up management account permissions for multi-Region and multi-account automation.
